Download nowHighlights
General
- Suitable for α-, β- and γ-contamination measurements
- Unsurpassed coverage of 20640 cm²
- Robust stainless steel housing, easy decontamination, easy maintenance
- Linux-based operating software
- Remote monitoring (optional)
- Very low background
Features

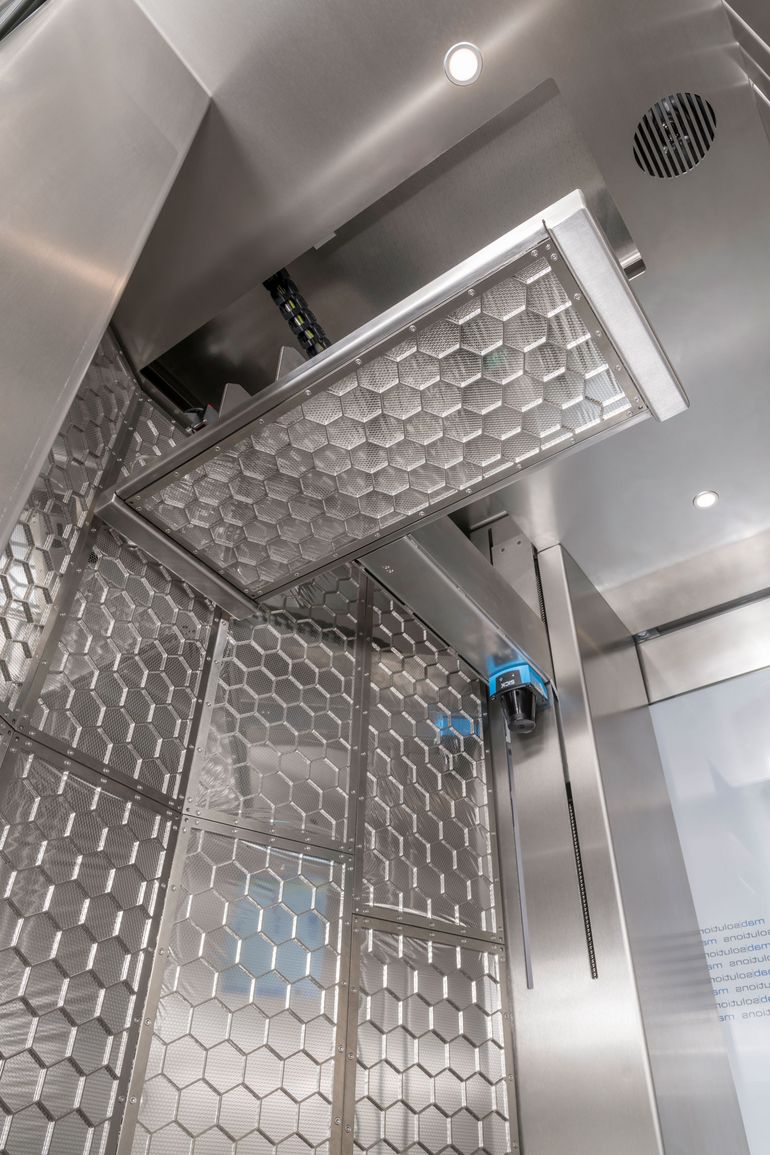

- Automatically adjustable overhead detector, from 160 cm to 210 cm
- QuickScan technology to reduce count times
- Negligible dead zones between the individual detectors

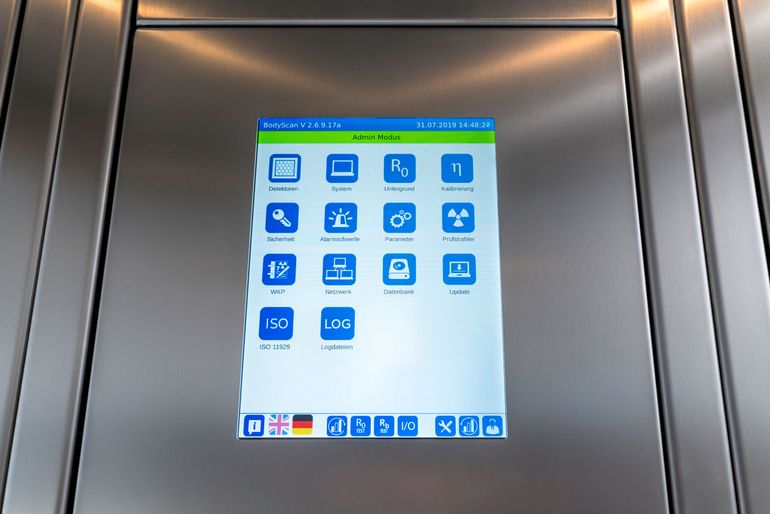

- User screens and voice prompts in user-selectable language
Measurement Mode
- Background updates for all detectors every second
- Automatic measuring time calculation
- Presets for specific measuring times
- User guidance through voice output
- Display of contaminated areas
- Measurements saved to an SQL database
Product Overview
Body Scan
Measurement Mode

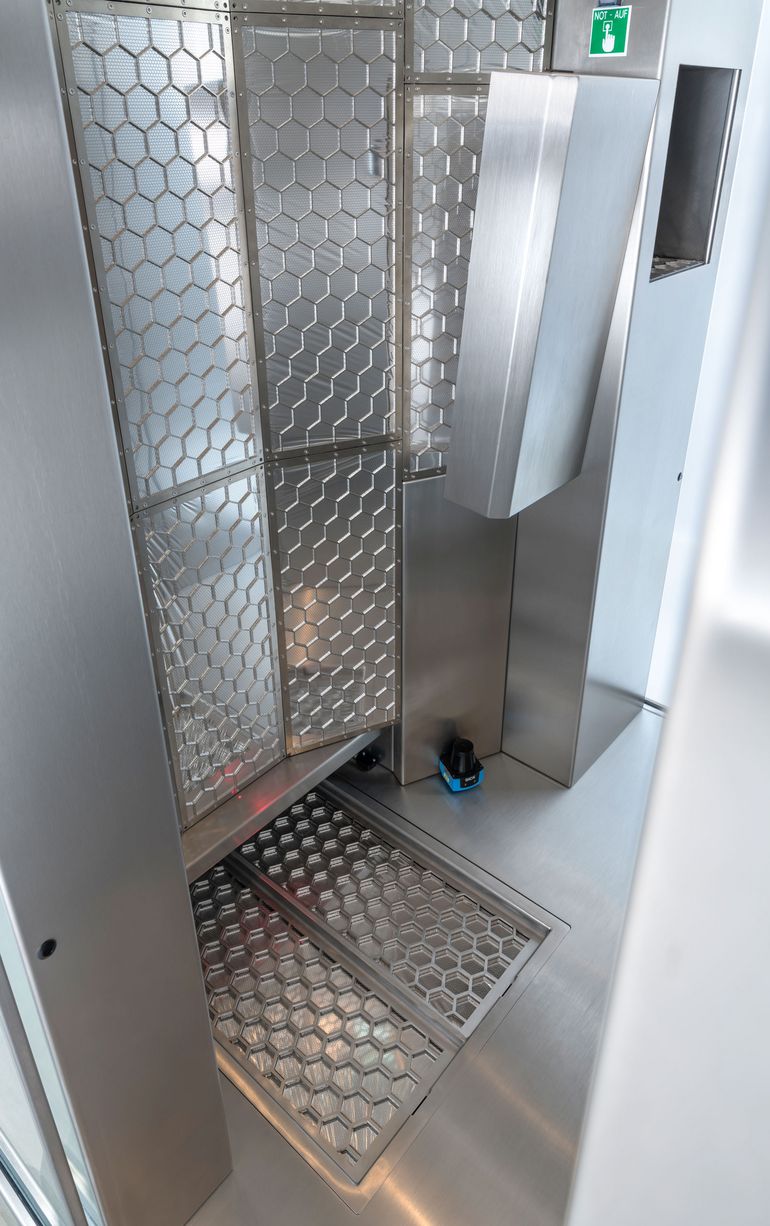

The measurement principle is based on two steps for each person (front and back measurement). The optimized detector arrangement makes it possible to capture almost the entire surface of the person being measured. The person’s size is irrelevant. The head detector is automatically positioned and is secured by a light curtain. During measurement, the positions of the hands, feet, head and body are monitored constantly to prevent positioning errors. For easy handling, the touchscreen and detailed audible instructions guide the user into the correct position. If no person or contamination is being detected, the background is automatically and continuously monitored. During measurement, the loudspeaker indicates the remaining measurement time and all measurement values are displayed at the same time. For alarms, various threshold values can be set. The measurement results can be shown in cps, Bq, and Bq/cm2, as desired.
Technical Data
| SZ 860 PLASTIC SCINTILLATION DETECTOR | PDK 860 GAS FLOW PROPORTIONAL DETECTOR | |
| Housing | robust plastic housing | robust aluminum housing |
| Transmission rate | 83% | 83% |
| Entry window dimensions | 480 mm x 180 mm | 480 mm x 180 mm |
| Active surface | 860 cm² | 860 cm² |
| Entry window material | Mylar/PE | Mylar/PE |
| Background | α < 0.1 cps, β < 15 cps | α < 0.1 cps, β < 10 cps |
| Dimensions | 500 mm x 180 mm x 60 mm (L x W x H) | 500 mm x 180 mm x 45 mm (L x W x H) |
| Weight | approx. 1.2 kg | approx. 1.4 kg |
| Mechanical Data | ||
| Dimensions & Weight | (W x H x D) [mm] | |
| Open cabinet | 2400 x 750 x 1000, 300 kg | |
| With doors | 2400 x 1000 x 1300, 500 kg | |
| With doors + gamma detectors + lead shielding | 2400 x 1000 x 1300, 1500 kg | |
| Material | Stainless steel |
